How to start Windchill

Posted on In , Word count in article: 125 Reading time ≈ 1 mins.
Detailed steps for starting Windchill(10)

1 Starting DS

Enter the WindchillDS\sever\bat directory, run start-ds.bat

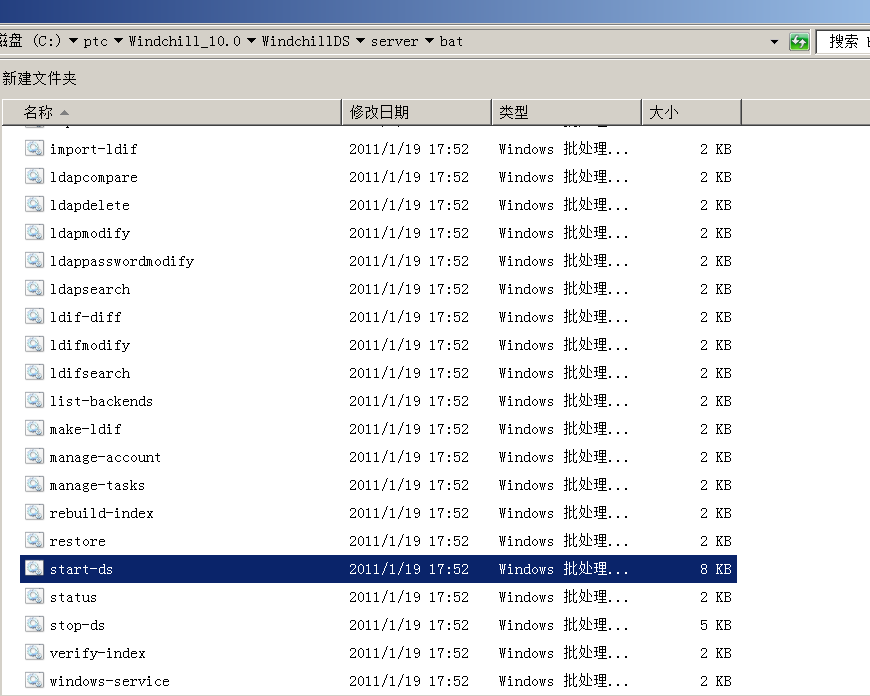

Starting DS

You’ll see some outputs that then shut down automatically, whitch is normal.

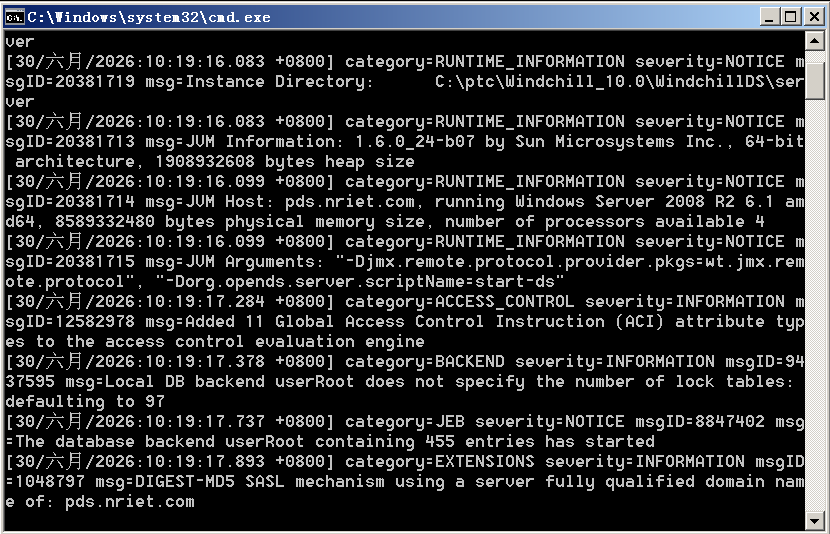

DS Output

2 Starting the HTTP Server

Enter the {httpserver}\bin directory, run httpd.exe

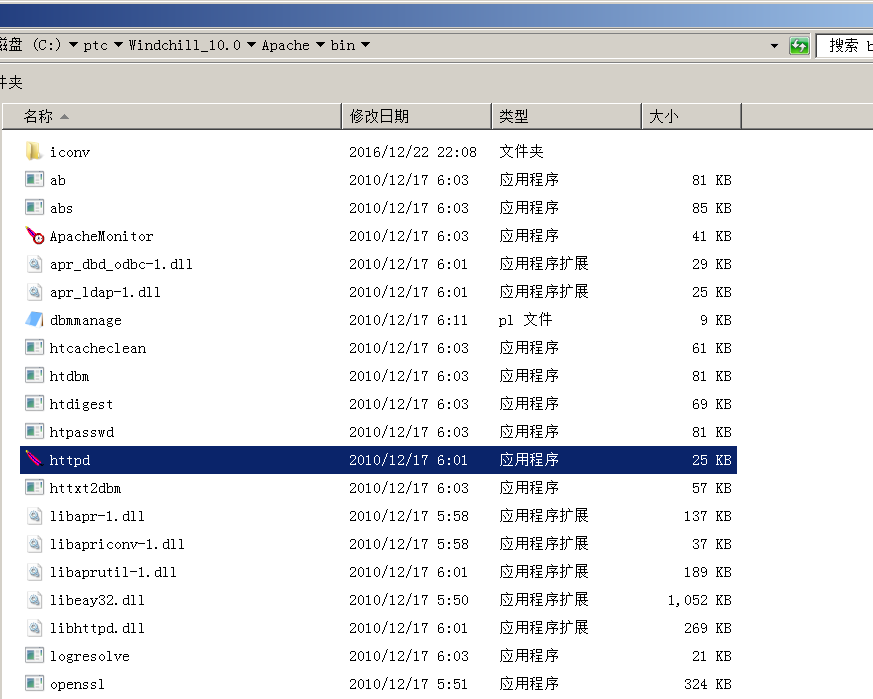

Find http.exe

No output is displayed after it is started.

httpd

3 Starting the Windchill Method Server

Open the Start menu, all programs, and in the Windchill directory, you can find Windchill Method Server, click and run.

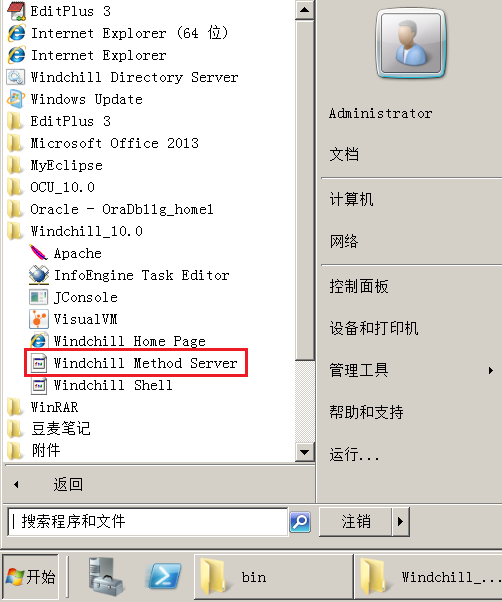

Find Windchill Method Server script

It will start two Java processes, ServerManager and MethodServer, and wait for MethodServer ready to appear, indicating successful startup.

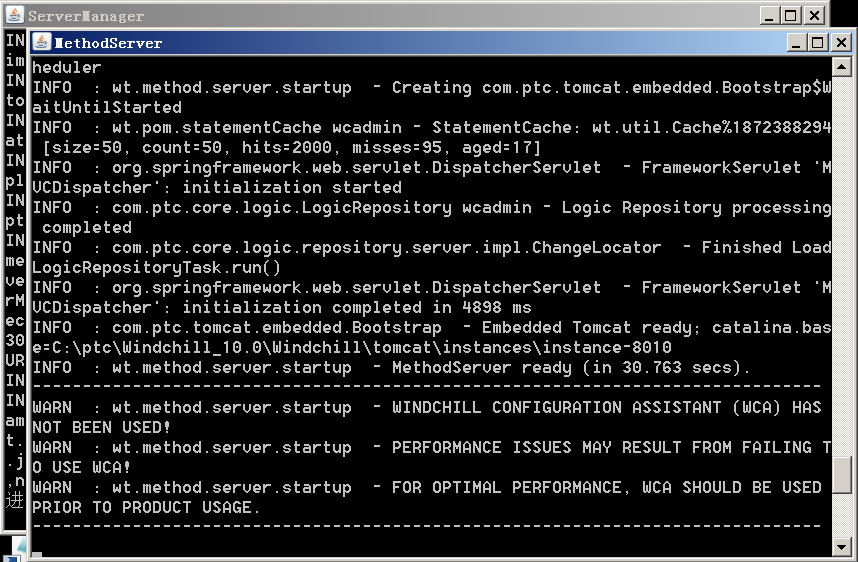

Starting the Method Server

4 Testing

Open web browser, enter {Domain name}/Windchill/app

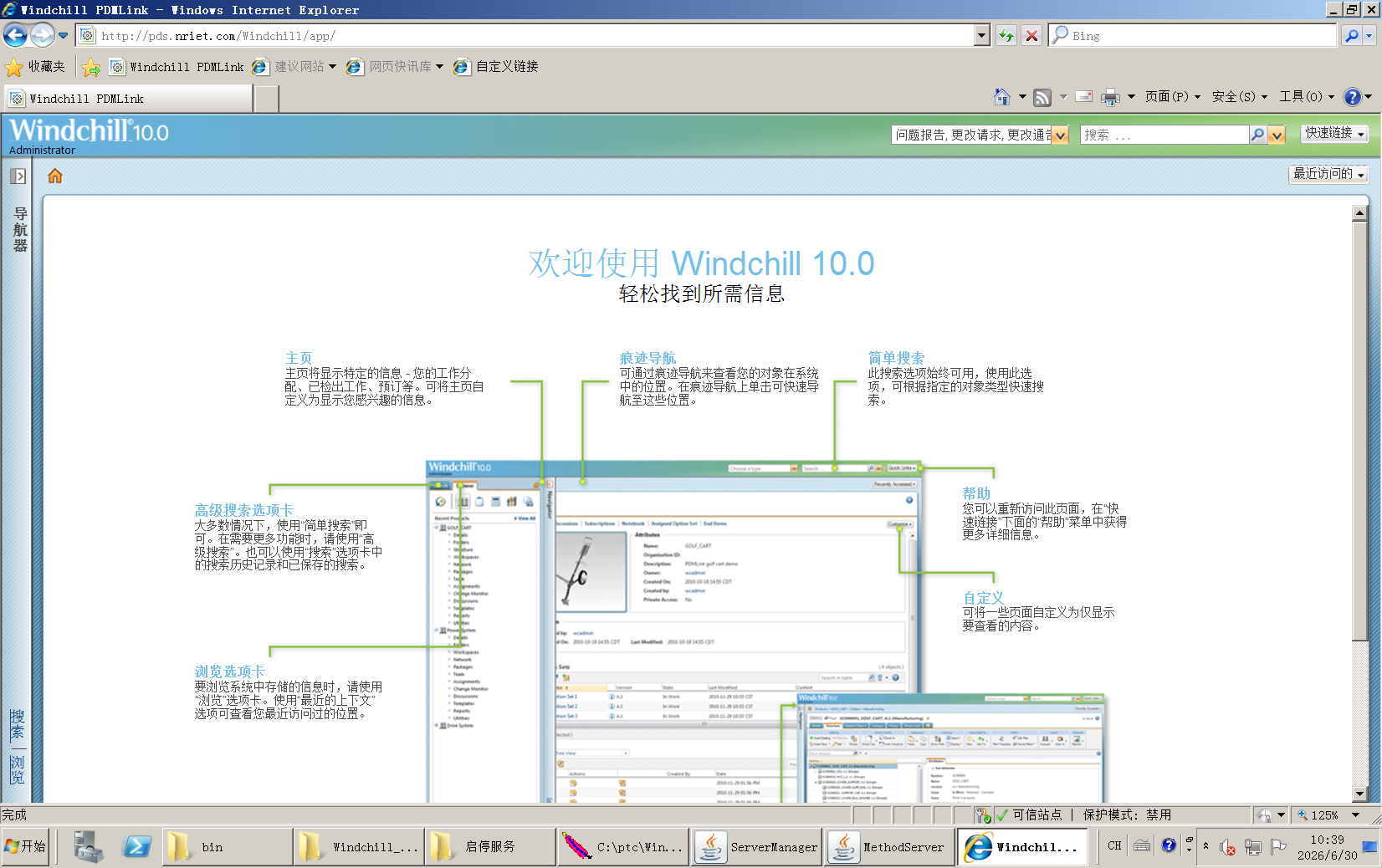

Test

Maybe these can be configured as automatically satrting service.
